Amphenol RF
Amphenol RF is one of the largest manufacturers of coaxial connectors for use in radio frequency, microwave, and data transmission system applications. The company designs, manufactures and markets electrical, electronic and fiber optic connectors, coaxial and flat-ribbon cable, and interconnect systems.
Amphenol RF utilizes advanced manufacturing technology to produce their coaxial connectors and cable assemblies in high volume with superior quality. The result is Amphenol RF offering a full portfolio of Radio Frequency interconnect products that meet the most exacting RF and data systems requirements, either military or commercial.
The primary markets for the Amphenol RF’s products are communications and information processing markets, including aerospace and military electronics, broadband, broadcast, industrial, instrumental, medical, wireless, automotive, rail and other transportation and industrial applications.
Amphenol RF Products Include:

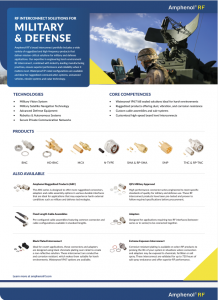

- MIL-PRF-39012 RF Connectors
- MIL-PRF-55339 RF Connectors
- Amphenol RF SMP Connectors
Featured Amphenol RF Products

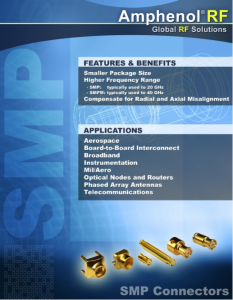

Amphenol RF SMP Connectors
With a subminiature interface and a frequency range of DC to 40 GHz, Amphenol RF SMP connectors are ideal for miniaturized high frequency coaxial modules. The full and limited detent systems provide respective levels of engagement/disengagement forces.
This family of interconnects addresses all package design needs. In addition to microwave applications, the Amphenol RF SMP connector can be utilized as a highly shielded interconnect for high data rate applications. It can also be used in a board-to-board system using a floating bullet, which provides a link between mated pairs compensating for both radial and axial misalignment.
- Smaller package size
- RF performance of DC to 40 GHz
- Designed to accommodate both radial and axial misalignment
- Push-on and snap-on mating styles for quick installation
- Available in cable-to-board mated pair
- Plug: Right angle or straight, with termination capability to 0.047″ or 0.086″, semi-rigid or conformable coax
- Receptacle: Designed for surface-mount termination (SMT), through hole, or end launch mounting
- Commonly used for antennas, broadband, instrumentation, and military-aerospace applications
